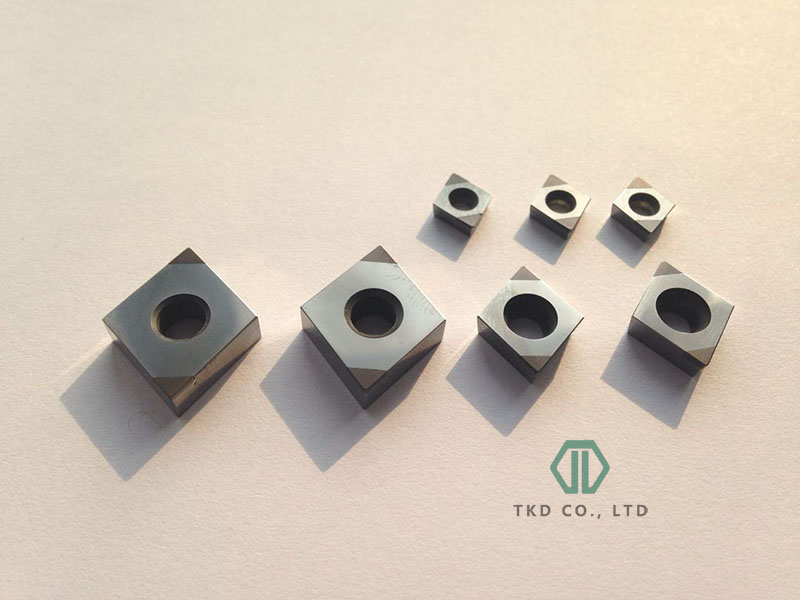

PCBN Insert

PCBN Insert

PCBN inserts and CBN solid tools are mainly used for: gray cast iron (HT200/250/300), ductile iron (QT400/500/600), high boron cast iron, alloy cast iron, chilled cast iron, powder metallurgy, various tool steel, bearing steel, high speed Hardened after hardened steel, etc.

Reading 117 times
Send Inquiries
Details

PCBN inserts and CBN solid tools are mainly used for: gray cast iron (HT200/250/300), ductile iron (QT400/500/600), high boron cast iron, alloy cast iron, chilled cast iron, powder metallurgy, various tool steel, bearing steel, high speed Hardened after hardened steel, etc.

Below are the grinding and cutting data for your reference:

Workpiece materialsHardnessV(m/min)F(mm/rev)AP(mm)
Grey cast IronHB170-300500-15000.1-0.40.1-1.5
Nodular Cast IronHB240-300200-4000.1-0.40.1-1.5
Alloyed cast IronHB240-300150-3000.05-0.40.1-0.5
Fe-based P/MHRC45-5050-1500.05-0.40.05-0.5
Hardened steelHRC-55-6580-2000.05-0.20.05-0.2
Heat-resistant alloys-50-2000.05-0.20.05-0.2
Next: CBN solid inserts
